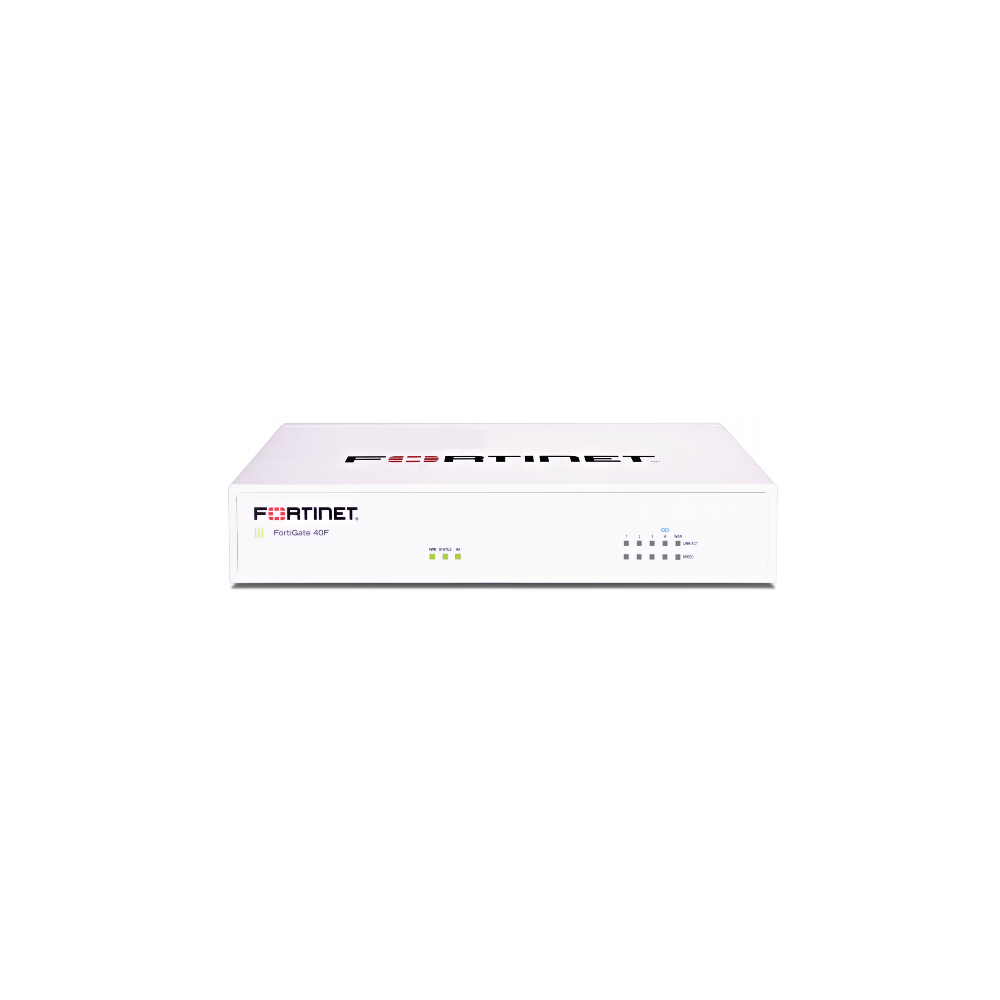

The FortiGate 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security

- Next Generation Firewall
- Secure SD-WAN

• Networking
• Technical Specs
• Warranty

• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet

  Network / Transport Protocol: IPSec

  Features: Fanless, Firewall protection, FortiLink Mode, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), Web threat protection

• Interface Provided

  1x USB Port

  1x Console Port

  1x GE RJ45 WAN Port

  1x GE RJ45 FortiLink Port

  3x GE RJ45 Ethernet Ports

  Performance:

  Application control (HTTP 64K): 990 Mbps, CAPWAP throughput: 3.5 Gbps, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput (512-byte UDP): 5 Gbps, Firewall throughput (64-byte UDP): 5 Gbps, Firewall throughput: 7.5 Mpps, IPS throughput: 1 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 310 Mbps, SSL inspection throughput: 320 connections per second, Threat protection throughput: 600 Mbps, VPN throughput (512-bit IPSec): 4.4 Gbps, VPN throughput (SSL): 490 Mbps


  Capacity:

  Client to gateway IPSec VPN tunnels: 250, Concurrent sessions: 700000, Concurrent SSL VPN users: 200, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Latency: 4 µs, New sessions: 35000, Number of FortiAP devices: 10, Number of FortiClient devices: 200, Number of FortiSwitches: 8, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 55000, Virtual domains: 10


  Power Device:

  Power Required: Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz

  Power Consumption(Average / Maximum): 13.4 W / 15.4 W 14.6 W / 16.6 W

  Current (Maximum): 100V AC / 0.2A, 240V AC / 0.1A

  Environmental Parameters:

  Operating Temperature: 32–104°F (0–40°C)

  Humidity: 10–90% non-condensing




• 60-day warranty
