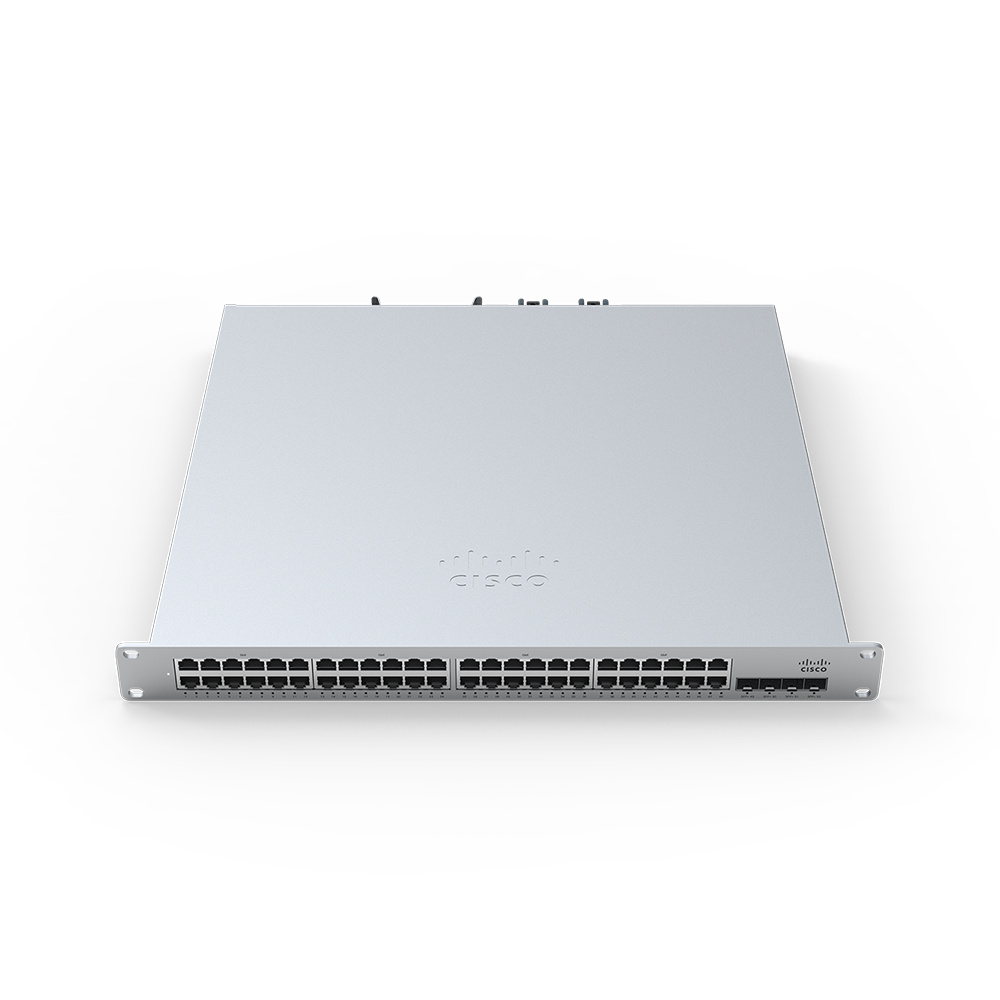

The Cisco Meraki MS350-48P provides 10G SFP+ uplinks and high-performance access switching for large enterprise and campus networks, media-rich applications, wireless-first environments, that require secure LAN connectivity, and layer 3 access – with hardware options for redundancy. The switch highly scalable Layer 3 routing and modular power/fans for mission-critical networks.

- Stackable Access High-Capacity Switch
- Rapid Deployment & Configuration
- Application Layer Visibility

• Capabilities & Stacking
• Technical Specs
• Warranty & License

• - 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  - 802.1Q VLAN tagging with 4,094 addressable tags
  - 802.1D Spanning Tree Protocol (RSTP, STP)
  - 802.1ab Link Layer Discovery Protocol (LLDP)
  - 802.3ad link aggregation with up to 8 ports per aggregate
  - Broadcast storm control
  - IGMP snooping for multicast filtering
  - MAC forwarding table entries: 96,000
  - Unified configuration and monitoring of all switches
  - Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
  - Physically stack up to 8 switches for added resiliency in high-throughput environments

• Interfaces:
  48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+), available on all ports (maximum of 30W per port for PoE+)
  4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
  2 × Stacking interfaces
  Auto negotiation and crossover detection

  Performance:
  Non-blocking fabric
  176 Gbps non-blocking switching capacity
  2.5 microsecond latency

  Power:
  Power input: 100-240 VAC, 47-63 Hz
  Power consumption: 63-478 W max

  Security:
  Integrated two-factor authentication for Dashboard management
  Role-based access control (RBAC) with granular device and configuration control
  Corporate-wide password policy enforcement IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
  Multi-Domain/Multi-Host/Multi Authentication
  Port security: Sticky MAC, MAC whitelisting
  DHCP snooping, detection and blocking, Dynamic ARP Inspection
  STP Enhancements: BPDU guard, Root guard, Loop guard
  IPv4 and IPv6 ACLs

  Environmental Parameters:Operating temperature: 0°C to 45°C, Humidity: 5 to 95% non-condensing

  Weight: 13.82 lb (6.27 kg)

• Warranty & Support:
  Full lifetime hardware warranty

  Next-day advanced replacement included

  Licenses:
  Enterprise - LIC-MS350-48LP
  Network-wide visibility and control via the cloud.
