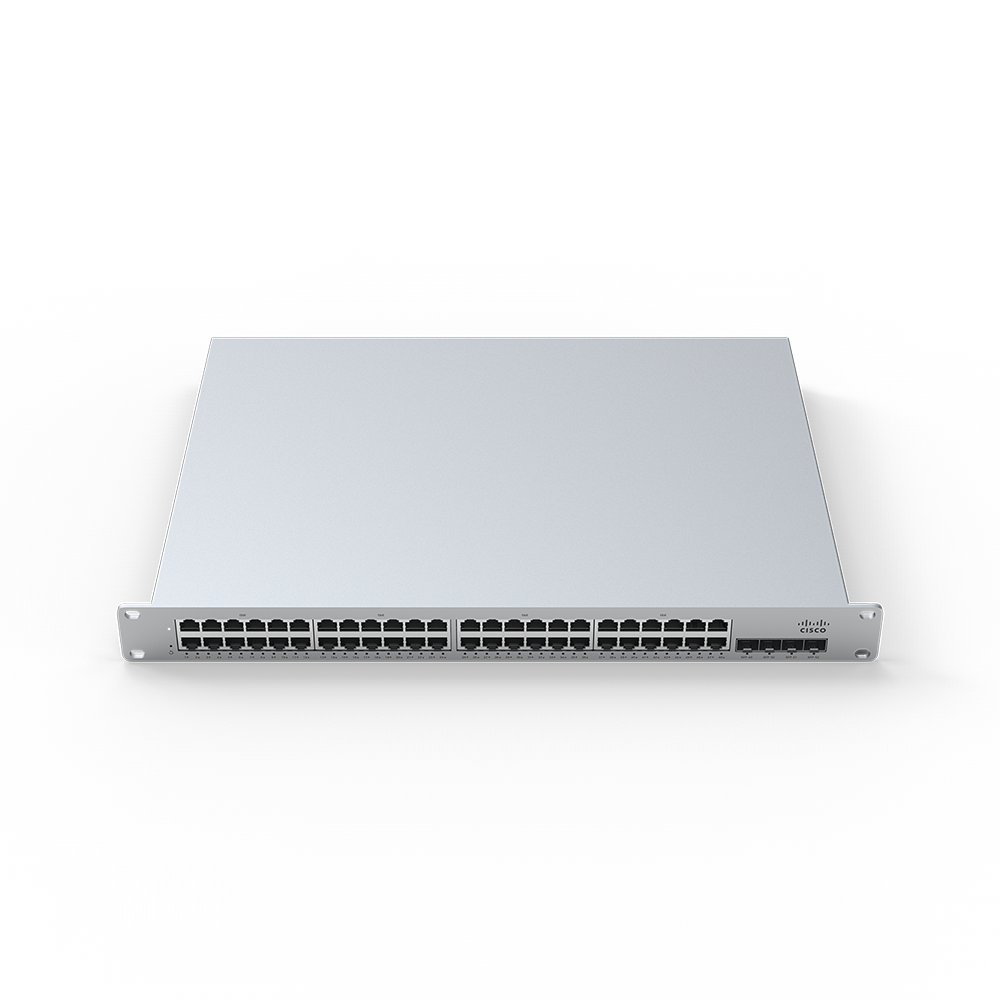

Cisco Meraki MS210-48P switches provide Layer 2 access switching for small campus deployments requiring secure LAN connectivity and basic Layer 3 connectivity. The MS210 series includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements.

- Stackable Access Switches
- Rapid Deployment & Configuration
- Application Layer Visibility

• Capabilities & Stacking
• Technical Specs
• Warranty & License

• - 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  - 802.1Q VLAN and trunking support for up to 4,094 VLANs
  - 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  - STP Enhancements: BPDU guard, Root guard, Loop guard
  - Broadcast storm control
  - 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  - 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  - 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  - Port mirroring
  - IGMP snooping for multicast filtering
  - MAC forwarding entries: 32K
  - Physical stacking of up to 8 switches with 160 Gbps stack bandwidth on all models
  - Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

• Interfaces:
  48 × 10/100/1000BASE-T Ethernet (RJ45)
  4 × 1G SFP ports for uplinks
  2 × stacking interfaces
  Auto negotiation and crossover detection

  Performance:
  Switching capacity: 176 Gbps
  Forwarding rate: 127.98 mpps
  Jumbo frame support (9600 byte Ethernet frame)
  Flow control support

  Power:
  Power input: 100-240 VAC, 47-63 Hz
  53-490 W max
  48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) available on all ports (maximum of 30W per port for PoE+) for powered switches

  Security:
  Integrated multi-factor authentication for Dashboard management
  Role-based access control (RBAC) with granular device and configuration control
  Corporate wide password policy enforcement
  IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
  Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  Port security: Sticky MAC, MAC whitelisting
  DHCP snooping, detection and blocking
  IPv4 and IPv6 ACLs

  Environmental Parameters:
  Operating temperature: -5°C to 50°C
  Humidity: 5 to 95% non-condensing
  Variable speed fans

  Weight: 9.63 lb (4.37 kg)

• Warranty & Support:
  Full lifetime hardware warranty

  Next-day advanced replacement included

  Licenses:
  Enterprise - LIC-MS210-48LP
  Network-wide visibility and control via the cloud.
